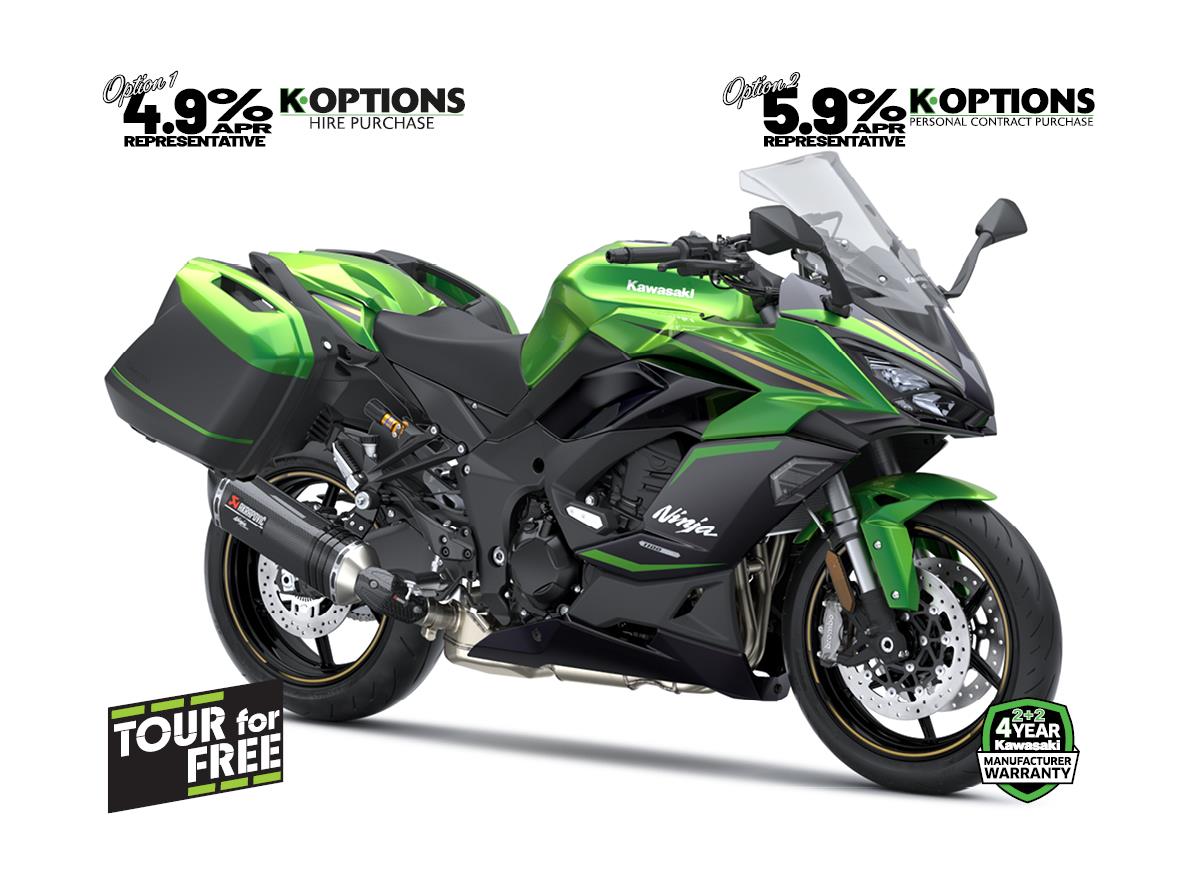

2025 Ninja 1100SX SE Performance Tourer

Engine Type

Liquid-cooled, 4-stroke In-Line Four

Displacement

1099cc

Bore x stroke

77 x 59 mm

Compression ratio

11.8:1

Valve/Induction system

DOHC, 16 valves

Fuel system

Fuel injection: Ø38 mm x 4

Ignition

Digital

Starting

Electric

Lubrication

Forced lubrication, wet sump

CO2 Emission

126 g/km

Maximum Power

100.0 kW {136 PS} / 9,000 rpm

Maximum torque

113 N•m {11.5 kgf•m} / 7,600 rpm

Transmission

6-speed, return

Final Drive

Sealed Chain

Clutch

Wet multi-disc, manual

Frame type

Twin-tube, aluminium

Rake/Trail

24.0°/98 mm

Wheel travel

Front: 150 mm | Rear: 141 mm

Steering angle

31° / 31°

left / right

31° / 31°

Seat Height

835 mm

Curb Mass

235 kg

Ground Clearance

135 mm

Dimensions (L x W x H)

2,100 x 805 x 1,190 (1,225 mm high position screen) mm

Wheelbase

1,440 mm

Fuel Capacity

19 litres

Suspension front

ø41 mm inverted fork with compression and rebound damping and spring preload adjustability

Suspension Rear

Horizontal Back-link, Öhlins S46 gas-charged rear shock with rebound damping adjustability and remote spring preload adjustability

Brakes Front

Dual semi-floating 300 mm Brembo discs. Caliper: Dual radial-mount, Brembo M4.32 monobloc, opposed 4-piston
